Features:

• 0 Extender, Bandwidth 18Gbps, HDR10, Dual POC,HDCP2.2/1.4 Compliant
• Transmit up to 70m under 4K@60Hz YUV4:4:4, 90m under 4K@30Hz/1080P over single Cat5e/6 cable
• 1x HDMI loop out on transmitter
• Support EDID management
• Support wide band IR Pass through
• HDMI audio sampling rate up to 192KHz, max LPCM 7.1 channel
• Support S/PDIF and PCM2.0 analog audio extraction
• Support Dolby True HD, PCM and DTS-HD master audio
• Support Micro USB port to upgrade new firmware

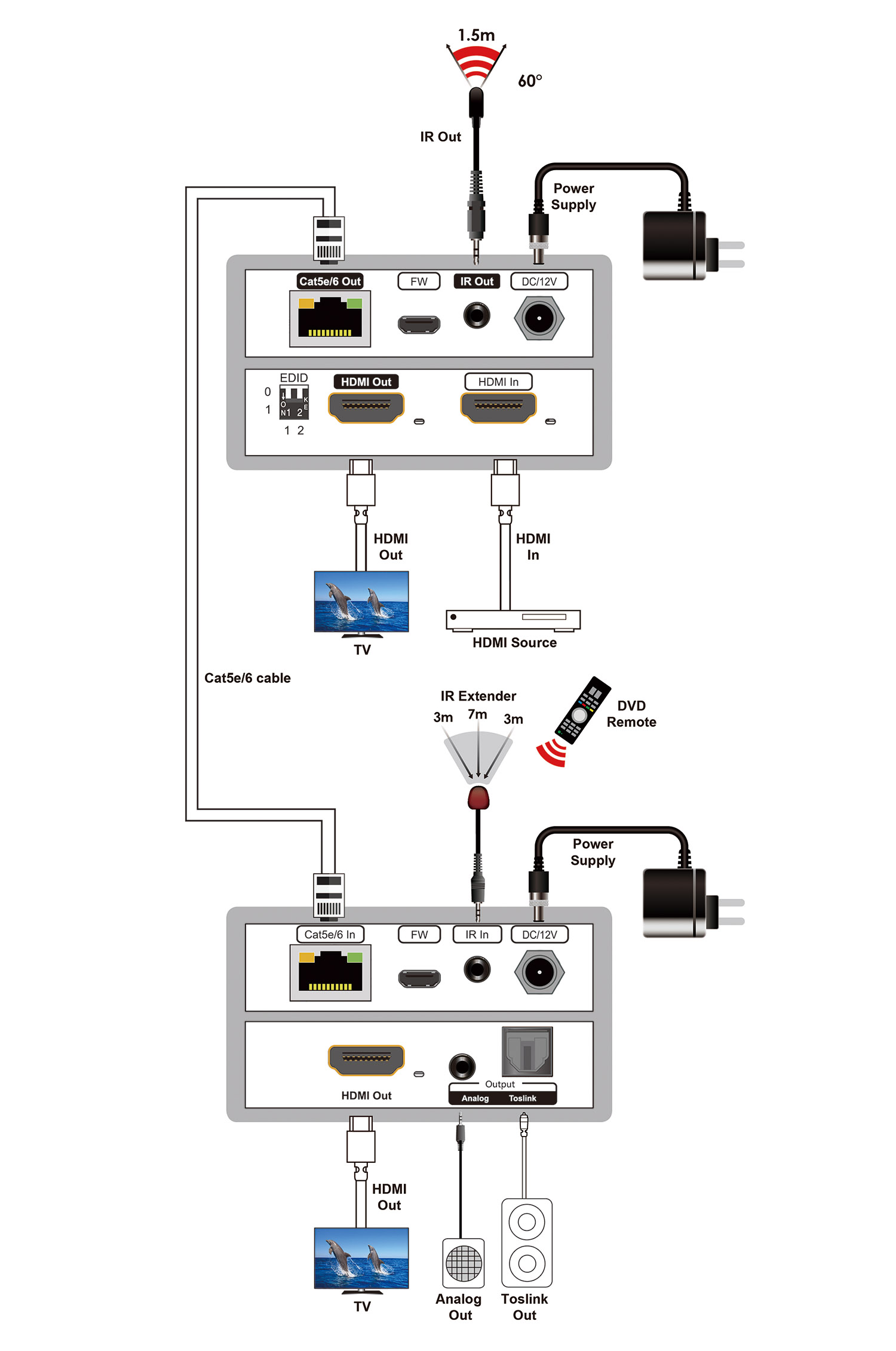

Connection Diagram:
