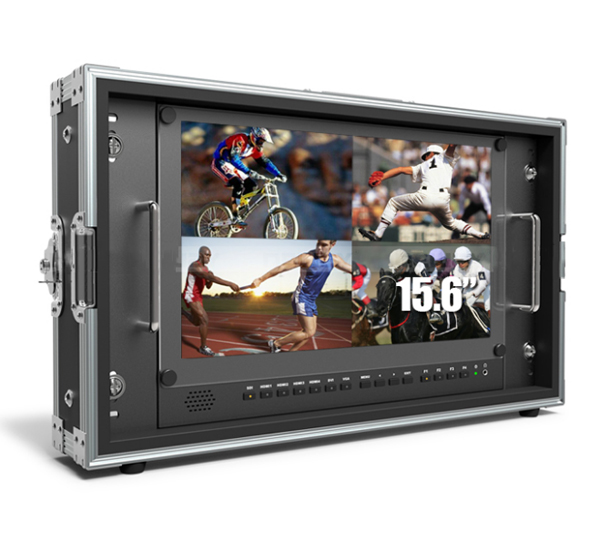

CK1560

Model : CK1560

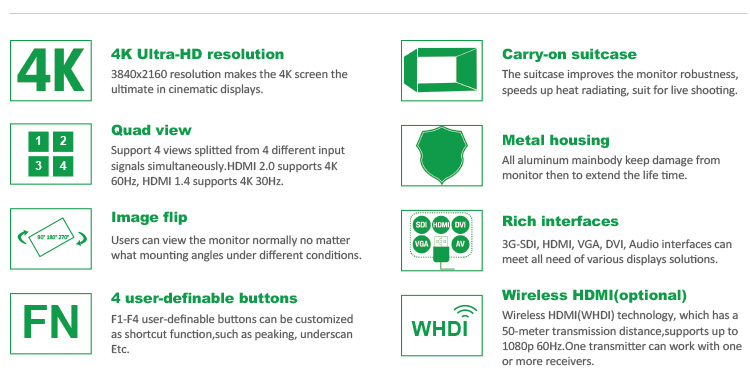

• 15.6" 16:9 LED Display, 176" Viewing angles
• 330cd/m² Brightness, 1000:1 Contrast
• Resolution : 3840 * 2160

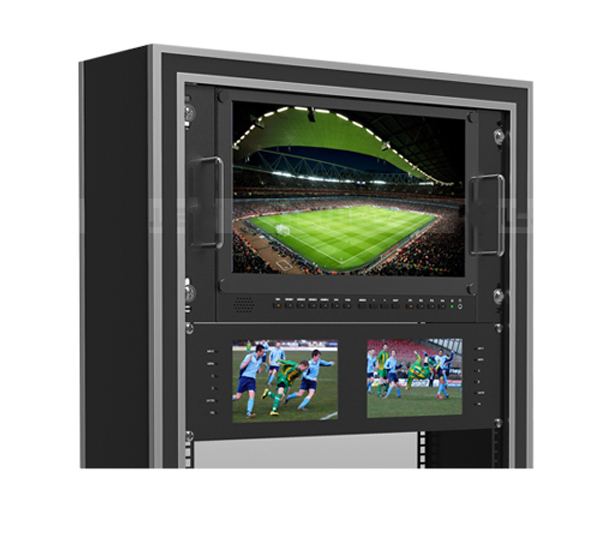

• Support 6U rack mount method
• HDMI supports 4K 60Hz, 30Hz
• 3G-SDF, HDMI, VGA, DVI,Audio interfaces
• Metal housing & Carry-on suitcase
• Optional wireless HDMI

Specifications

Panel Size : 15.6"

Resolution : 3840 * 2160

Aspect Ratio : 16 : 9

Brightness : 330cd/m²

 Contrast : 1000 : 1

Viewing Angle : 176^{o /} 176^o(H/V)

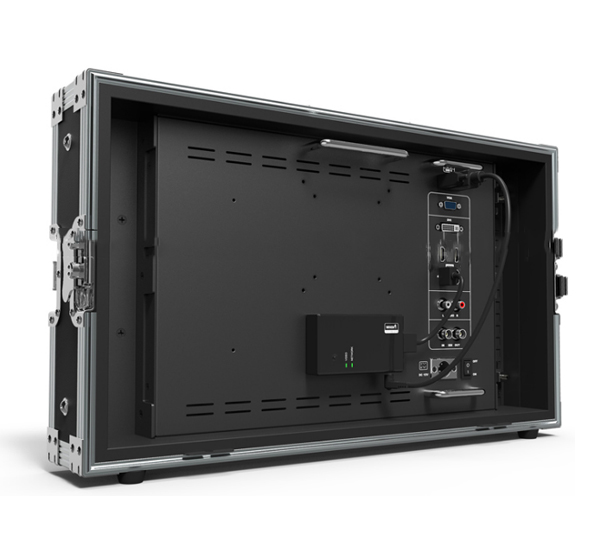

Input : 3G-DSI x 1, DVI x 1, VGA x 1, Audio (R/L), Tally x 1, HDMIx2.0 x 1 (Support 4K 60Hz), HDMI1.4 x 3 (support 30Hz), Wireless HDMI x 1 (Optional)

Output : 3G-SDI x 1

Audio : Speaker x 2, Ear Phone Slot x 1

Current : 1A (15V)

Input Voltage : DC12-24V (XLR)

Battery Plate : V-mount/Anton Bauer mount

Power Consumption : ≤15W

Operating Temperature : 0^oC ~ 60 C^o

Storage Temperature : -20^oC ~ 60^oC

Dimension (LWD) : 389 x 267 x 38mm / 524x305x170mm (with case)

Weight : 3.4kg / 12Kg (With Case)
